WINDOW STYLES
Casement Windows: Strong Ventilation, Limited Placement
A sash that cranks out of its opening moves more air than one that slides across it — and it needs somewhere to go. That single fact decides where a casement belongs in a US house and where it does not.
Side-hinged sash · geared operator at the sill · gasket compressed around the full perimeter
Who it's for
Kitchens with a counter to reach across, tall narrow openings a hung window would split badly, exposed elevations where drafts are the complaint, and basements where the clear opening matters.
How it opens
A crank drives an arm along a sill track and swings the sash outward on side hinges, so nearly the whole opening is uncovered. Closing it pulls the sash into a gasket that runs the full perimeter.
Cost drivers
Sash size, the operator hardware specified, the frame material and the glass package, plus anything done to the opening itself. Published national ranges, with each publisher named, are on the cost guide.
What the swing buys, and what it costs you
One mechanical choice, two columns of consequences.
What a casement does well
- Uncovers nearly the whole opening, where a sliding sash can uncover only part of it
- Catches air moving along the face of the wall and turns it into the room
- Operates with a crank you can reach across a counter or a deep sill
- Fits a tall narrow opening that would give a hung window two cramped sashes
- Seals against a gasket that wind pressure pushes the sash into rather than away from
- Can deliver a large clear opening from a modest hole, which matters in a basement
What the swing takes away
- Needs clear air outside for the full arc of the sash, every time it opens
- Puts the screen on the room side, where it is in front of you and in the way of the handle
- Rules out a conventional window air conditioner
- Concentrates the sash weight on hinges and an operator that can wear
- Limits how wide one sash can practically be built
- Sits badly under a storm door swing, over a walkway, or beside a driveway
Four US placements that suit it

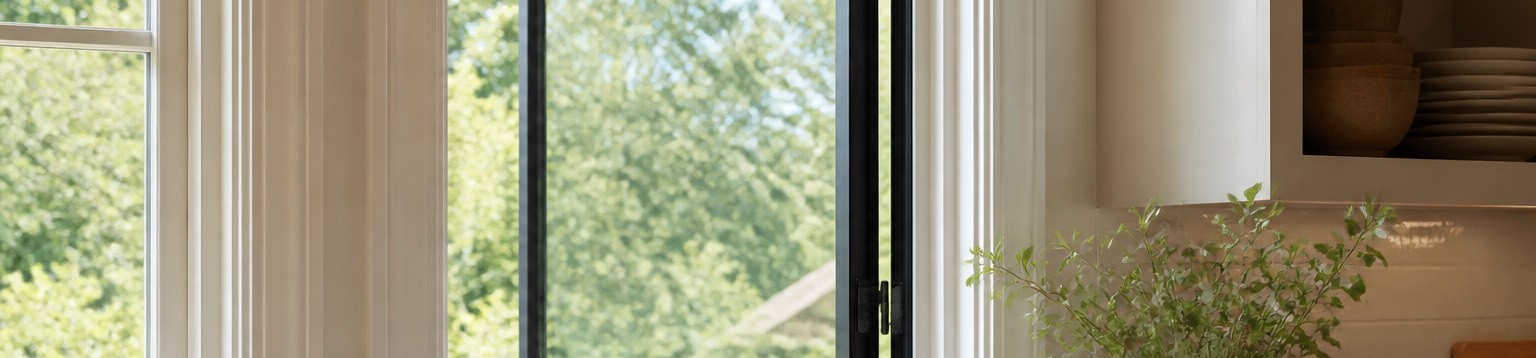

- Over a kitchen counter. The reach to a sash that must be gripped and lifted is uncomfortable; the reach to a crank is not.
- Tall narrow holes. A stair landing, a window flanking a chimney, the slot beside a front door — splitting the height there gives two panes too small to be worth having.
- Basements and lower levels. The sash leaves the hole rather than parking in it, so the clear opening can be larger from the same frame. The dimension that has to be met is set by the code edition your jurisdiction adopted, so get the unit’s figure in writing and check it locally.
- Exposed elevations. Not because the style is automatically tighter, but because a sash clamped shut behaves differently in a gale from one held only by its own travel.
The other four styles
Set the crank against how a hung window seals before deciding a room needs a different style at all. Where the swing turns out to be impossible, the usual substitute is a horizontal arrangement in the same hole.
How a crank-operated sash closes
The mechanism is the whole story: a casement is pulled shut, not pushed shut.
Turning the handle drives a geared operator that pushes an arm along a track at the sill, swinging the sash outward on hinges at one side. Reversing the handle draws the sash back until it lands on a gasket that runs the full perimeter of the frame, and a lock — often engaging at two or three points along the closing edge — pulls it tight against that gasket and holds it there. Nothing is sliding at the moment the window seals.
Two consequences follow. Wind pressing on the outside of a closed casement presses the sash further into its gasket rather than trying to part two sliding surfaces, which is why the style is common on exposed elevations. And the hardware carries the whole weight of the sash through a small number of points, which is why an oversized casement is a genuinely different proposition from an oversized sash that slides — there is a practical width beyond which manufacturers stop offering the style, and a company that will not tell you what that limit is on the product it is quoting has not answered a fair question.
The performance consequence is real but it belongs on the label rather than in a sales conversation. What the certified figures on a finished unit report, and how to compare two of them, is set out on the energy-efficiency page.
The screen is on the inside, and that surprises people
A detail nobody mentions in the showroom and everybody notices at home.
Because the sash swings outward, the insect screen has to live on the room side of the frame. You look through it whenever the window is open, you clean it from indoors, and it sits between you and the crank handle, which is why most casement handles fold flat. None of this is a fault, but it changes the feel of a room in a way that a photograph never shows, and it is the most common source of surprise after installation. If the view through a particular window is the reason you are replacing it, ask to see the screen on a sample before you order the house.
Six questions for the measurement visit
Clearance and hardware, which is where casement problems actually live.
- How far does the sash project past the wall when it is fully open?
- Is there a walkway, deck, path or driveway inside that arc?
- Where does the screen sit, and does it interfere with the crank handle?
- Is the operator hardware a separate warranty item from the window itself?
- What is the clear opening of this unit if the room it serves is a bedroom?
- Does the sash open away from the prevailing summer wind or into it?
Casement questions
Measure the swing before you order
Note the clearances outside each opening, then ask for quotes that respect them.
